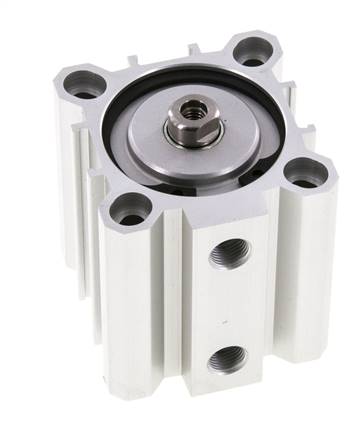

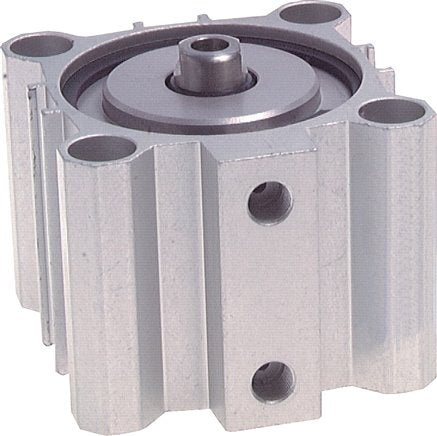

Short-stroke cylinder, single-acting, piston 40mm, stroke 30mm
Please log in to see prices
Item number: NE 40/30
| Property | Value |
|---|---|
| Piston diameter [mm] | 40 |
| Stroke [mm] | 30 |
| execution | without magnetic piston |
| C1 (piston rod thread) | M6 |
| P (compressed air connection) | G 1/8" |

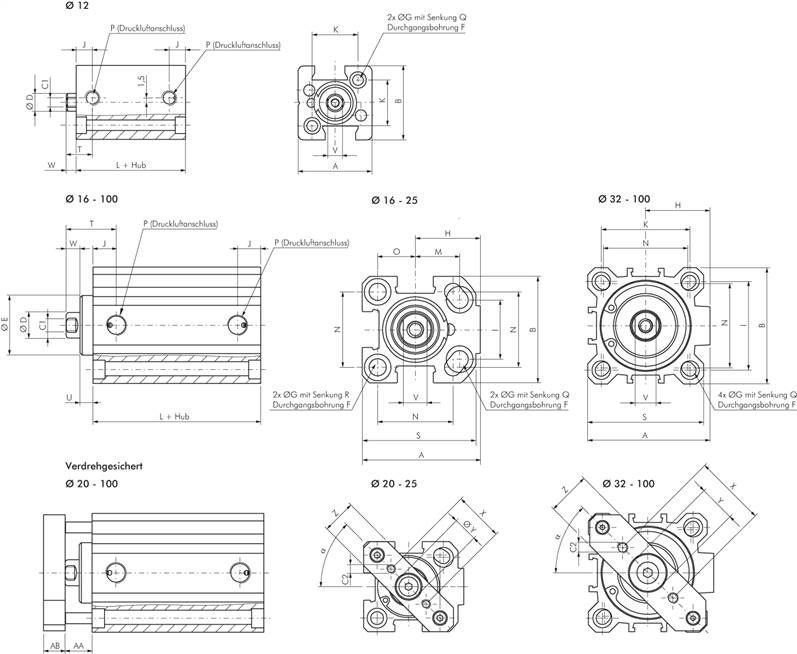

| A [mm] | 58.0 |
| B [mm] | 55 |
| D [mm] | 12 |
| F [mm] | 5.8 |
| G [mm] | 9.0 |
| H [mm] | 30.5 |
| I [mm] | 42 |
| J [mm] | 11.0 |
| K [mm] | 42.0 |
| L [mm] | 29.5 |
| N [mm] | 40.0 |
| Q [mm] | 5.7 |
| S [mm] | 55.0 |
| T [mm] | 12 |
| V [mm] | 10 |
| W [mm] | 6.0 |
| X [mm] | 33 |
| Y [mm] | 17 |
| Z [mm] | 20 |
| AA [mm] | 12.5 |
| AB [mm] | 10 |
| Weight | 310g/pc. |
| GTIN | 4050571525415 |
| Customs goods number | 84799070 |
