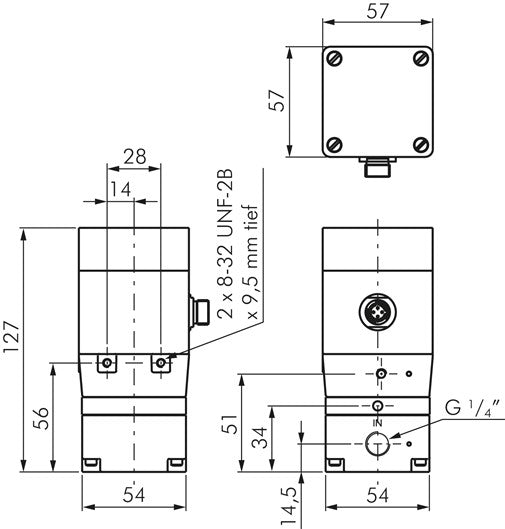

Proportional pressure regulator G 1/4", 0 - 1 bar, 4 - 20 mA, standard (with mounting bracket)
Please log in to see prices
Item number: DRPE 14-1-E20
| Property | Value |
|---|---|
| Input signal | 4 - 20 mA |
| Design | Standard (with mounting bracket) |
| thread | G 1/4" |
| Pressure control range [bar] | 0 - 1 |
| Flow rate [l/min] | 425 |
| Venting [l/min] | 198 |
| Inlet pressure (at least setting pressure) [bar] | 0 - 2.1 |
| Pressure gauge connection | G 1/8" |
| Weight | 800g/pc. |
| GTIN | 4050571271848 |
