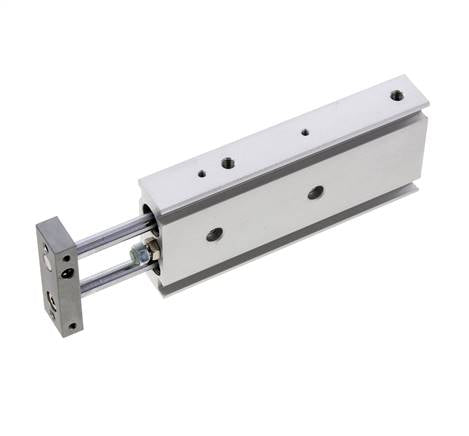

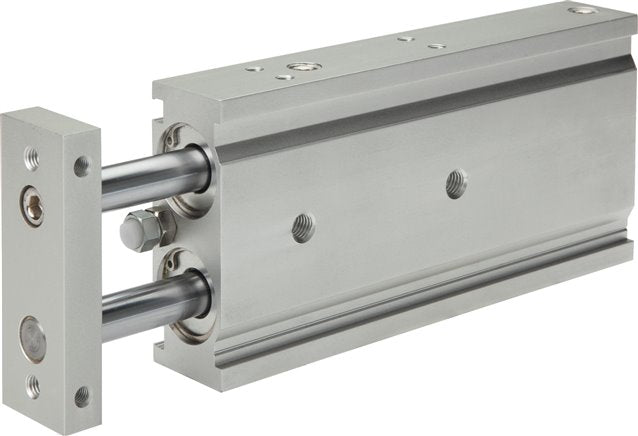

Double piston cylinder, piston 10mm, stroke 50mm
Please log in to see prices
Article number: 4050571874193

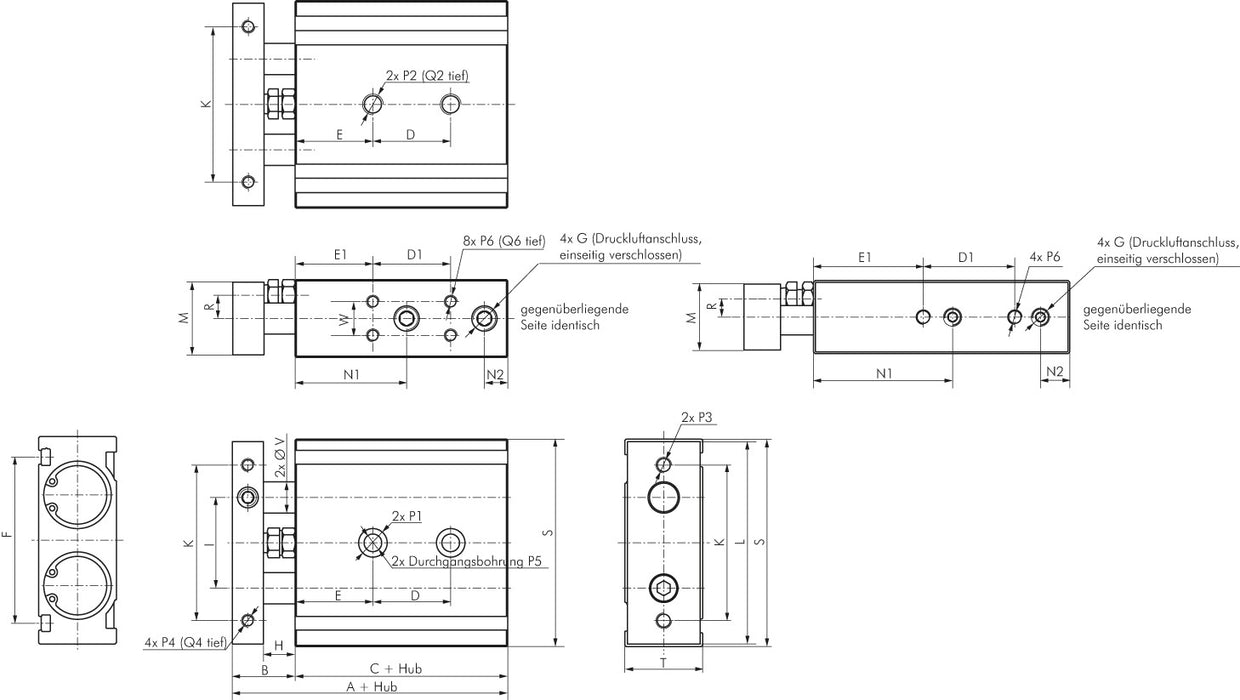

| Property | Value |
|---|---|
| Piston diameter [mm] | 10 |
| Stroke [mm] | 50 |
| Stroke adjustment range [mm] | 45 - 50 |
| execution | Double piston cylinder |
| G (compressed air connection) | M5 |
| Repair kits | EXSM 10 REP |
| permissible shear force [N] | 1.6 |
| A [mm] | 72.0 |
| B [mm] | 17.0 |
| C [mm] | 55 |
| D [mm] | 40 |
| D1 | 40 |
| E [mm] | 20 |
| E1 [mm] | 20 |
| F [mm] | 36.5 |
| H [mm] | 9 |
| I [mm] | 20 |
| K [mm] | 35 |
| L [mm] | 44 |
| M [mm] | 15 |
| N1 [mm] | 30.0 |
| N2 [mm] | 8.0 |
| R [mm] | 3.5 |
| S [mm] | 46 |
| T [mm] | 17 |
| V [mm] | 6 |
| P1 | 6.5 (3.3 deep) |
| P2 | M4 |
| P3 | M4 |
| P4 | M3 |
| P5 [mm] | 3.4 |
| P6 | M3 |
| Q2 [mm] | 7 |
| Q6 [mm] | 5.0 |
| Weight | 230 g / pc. |
| GTIN | 4050571874193 |
| Customs commodity number | 84123100 |
| RoHS compliant | Yes |
