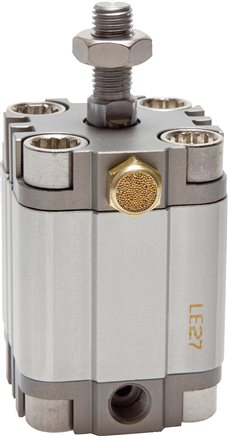

Compact cylinder, single-acting, piston 40mm, stroke 5mm
Please log in to see prices
Article number: 4050571620523
| Property | Value |
|---|---|
| Piston diameter [mm] | 40 |
| Stroke [mm] | 5 |

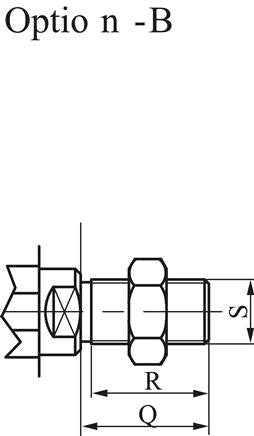

| execution | Piston rod with external thread |
| S (piston rod external thread) | M10x1.25 |
| G (compressed air connection) | G1/8" |

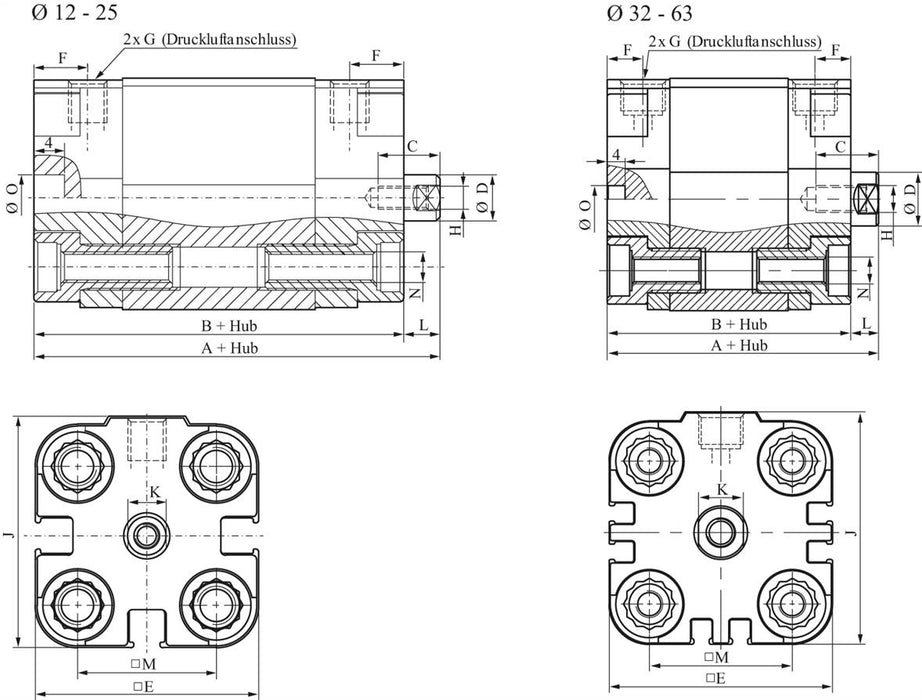

| A [mm] | 52.0 |
| B [mm] | 45.5 |
| C [mm] | 14 |
| D [mm] | 12 |
| E [mm] | 60 |
| F [mm] | 8th |
| J [mm] | 62.5 |
| K [mm] | 10 |
| L [mm] | 6.5 |
| M [mm] | 42 |
| N | M6 |
| O [mm] | 6 |
| Q [mm] | 22 |
| R [mm] | 20 |
| Weight | 500 g / pc. |
| GTIN | 4050571620523 |
| Customs commodity number | 84123100 |
| RoHS compliant | Yes |
