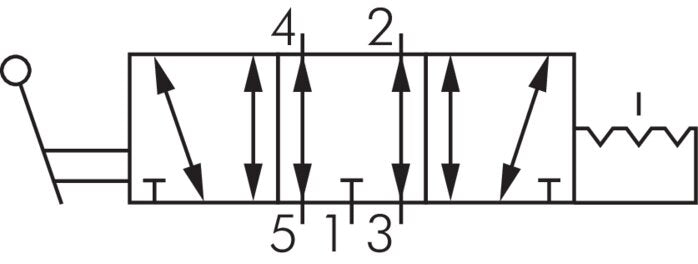

5/3-way hand lever valve, vented in the middle position, detent, G 1/2"
Please log in to see prices
Item number: HR 12 533
| Property | Value |
|---|---|
| function | Center position vented, detent |
| Thread (3x) | G 1/2" |
| Thread exhaust air (2x) | G 1/2" |
| Nominal width [mm] | 14 |
| Flow rate [l/min] | 3300 |
| Operating pressure [bar] | 0-12 |
| A [mm] | 70 |
| B [mm] | 40 |
| C [mm] | 106 |
| D [mm] | 50 |
| E [mm] | 6.5 |
| F [mm] | 40 |
| G [mm] | 64 |
| H [mm] | 148 |
| I [mm] | 51 |
| L [mm] | 193 |
| M [mm] | 36 |
| Weight | 1.4kg/pc. |
| GTIN | 4050571359997 |
| Customs goods number | 84812090 |
