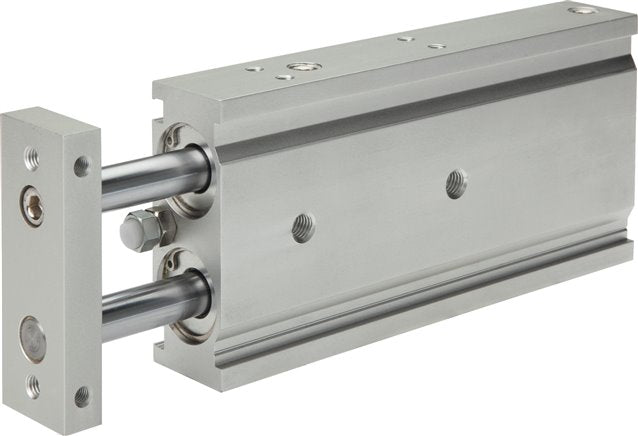

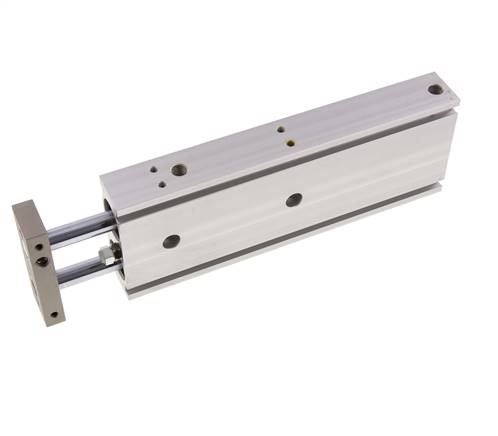

Doppelkolbenzylinder, Kolben 25mm, Hub 150mm
von MT Industries
Please log in to see prices
Artikelnummer: 4050571874469
| Property | Value |
|---|---|
| Kolbendurchmesser [mm] | 25 |
| Hub [mm] | 150 |
| Hub Einstellbereich [mm] | 145 - 150 |
| Ausführung | Doppelkolbenzylinder |
| G (Druckluftanschluss) | G 1/8" |
| Reparatursätze | EXSM 25 REP |
| zulässige Querkraft [N] | 4 |
| A [mm] | 96,0 |
| B [mm] | 24,0 |
| C [mm] | 72 |
| D [mm] | 80 |
| D1 | 80 |
| E [mm] | 30 |
| E1 [mm] | 30 |
| F [mm] | 64,0 |
| H [mm] | 12 |
| I [mm] | 35 |
| K [mm] | 60 |
| L [mm] | 78 |
| M [mm] | 28 |
| N1 [mm] | 43,0 |
| N2 [mm] | 9,0 |
| R [mm] | 9,0 |
| S [mm] | 80 |
| T [mm] | 30 |
| V [mm] | 12 |
| W [mm] | 13,0 |
| P1 | 11,0 (6,3 tief) |
| P2 | M 8 |
| P3 | M 6 |
| P4 | M 5 |
| P5 [mm] | 6,8 |
| P6 | M 5 |
| Q2 [mm] | 12 |
| Q4 [mm] | 7,5 |
| Q6 [mm] | 7,0 |
| Gewicht | 1,4 kg / Stk. |
| GTIN | 4050571874469 |
| Zollwarennummer | 84123100 |
| RoHS konform | Ja |
