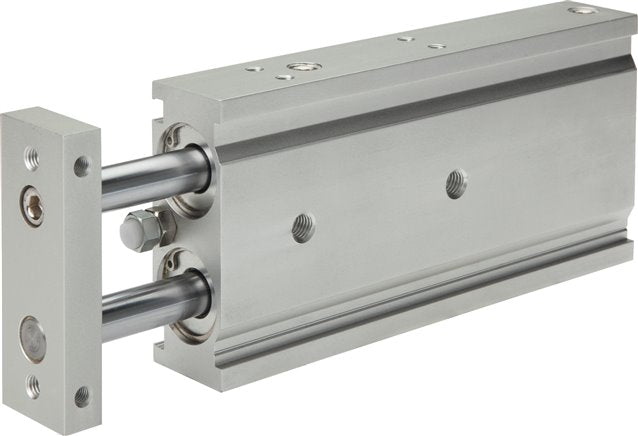

Doppelkolbenzylinder, Kolben 20mm, Hub 75mm
von MT Industries
Please log in to see prices
Artikelnummer: 4050571874414
| Property | Value |
|---|---|
| Kolbendurchmesser [mm] | 20 |
| Hub [mm] | 75 |
| Hub Einstellbereich [mm] | 70 - 75 |
| Ausführung | Doppelkolbenzylinder |
| G (Druckluftanschluss) | M 5 |
| Reparatursätze | EXSM 20 REP |
| zulässige Querkraft [N] | 4 |
| A [mm] | 94,0 |
| B [mm] | 24,0 |
| C [mm] | 70 |
| D [mm] | 60 |
| D1 | 60 |
| E [mm] | 30 |
| E1 [mm] | 30 |
| F [mm] | 53,0 |
| H [mm] | 12 |
| I [mm] | 28 |
| K [mm] | 50 |
| L [mm] | 62 |
| M [mm] | 23 |
| N1 [mm] | 46,0 |
| N2 [mm] | 9,0 |
| R [mm] | 6,5 |
| S [mm] | 64 |
| T [mm] | 25 |
| V [mm] | 10 |
| W [mm] | 9,5 |
| P1 | 9,5 (5,3 tief) |
| P2 | M 6 |
| P3 | M 5 |
| P4 | M 4 |
| P5 [mm] | 5,2 |
| P6 | M 4 |
| Q2 [mm] | 10 |
| Q4 [mm] | 6,0 |
| Q6 [mm] | 5,5 |
| Gewicht | 650 g / Stk. |
| GTIN | 4050571874414 |
| Zollwarennummer | 84123100 |
| RoHS konform | Ja |
