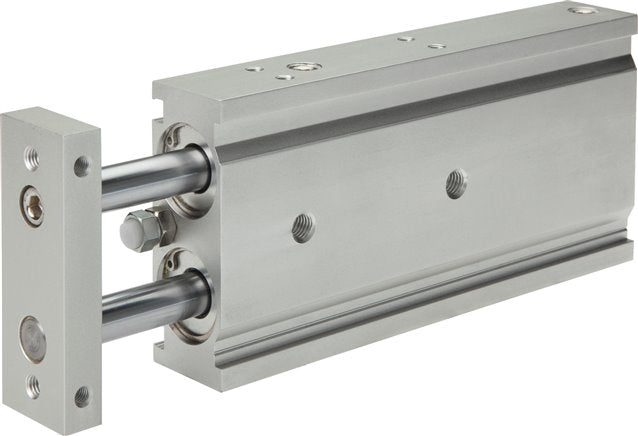

Doppelkolbenzylinder, Kolben 10mm, Hub 70mm
von MT Industries
Please log in to see prices
Artikelnummer: 4050571874216
| Property | Value |
|---|---|
| Kolbendurchmesser [mm] | 10 |
| Hub [mm] | 70 |
| Hub Einstellbereich [mm] | 65 - 70 |
| Ausführung | Doppelkolbenzylinder |
| G (Druckluftanschluss) | M 5 |
| Reparatursätze | EXSM 10 REP |
| zulässige Querkraft [N] | 1 |

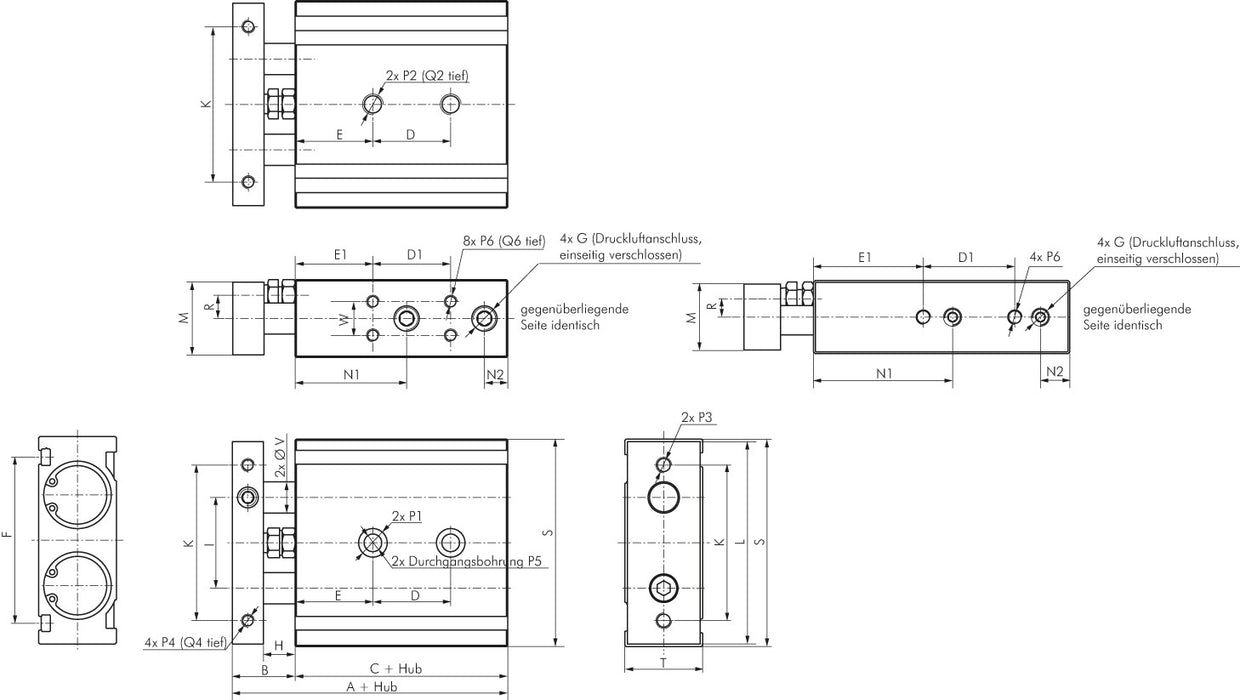

| A [mm] | 72,0 |
| B [mm] | 17,0 |
| C [mm] | 55 |
| D [mm] | 50 |
| D1 | 50 |
| E [mm] | 20 |
| E1 [mm] | 20 |
| F [mm] | 36,5 |
| H [mm] | 9 |
| I [mm] | 20 |
| K [mm] | 35 |
| L [mm] | 44 |
| M [mm] | 15 |
| N1 [mm] | 30,0 |
| N2 [mm] | 8,0 |
| R [mm] | 3,5 |
| S [mm] | 46 |
| T [mm] | 17 |
| V [mm] | 6 |
| P1 | 6,5 (3,3 tief) |
| P2 | M 4 |
| P3 | M 4 |
| P4 | M 3 |
| P5 [mm] | 3,4 |
| P6 | M 3 |
| Q2 [mm] | 7 |
| Q6 [mm] | 5,0 |
| Gewicht | 280 g / Stk. |
| GTIN | 4050571874216 |
| Zollwarennummer | 84123100 |
| RoHS konform | Ja |
